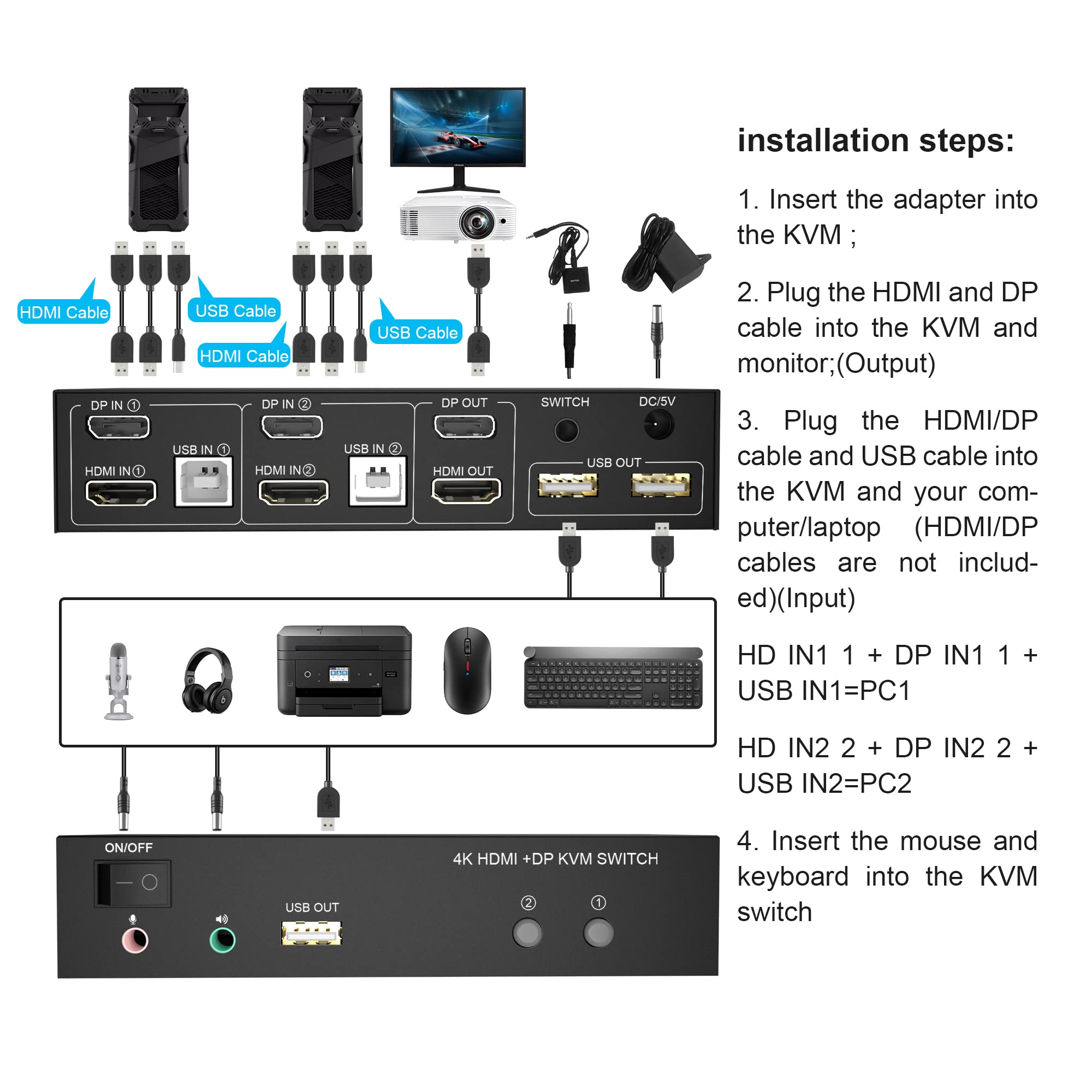

New Version KVM Switch Dual monitor Display Port and HDMI Features: No complicated installation is required, and non-professionals can easily operate it; Share one set of keyboard, mouse and dual monitors between 2 computers or laptops; Dual monitors output support up to 4K@60Hz for extended,mirrored or spliced display（Depends on your computer's graphics card.）; Cross support major operation systems including Windows, Linux, Mac and more; With extra 3 USB 2.0 and Audio Microphone output; The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered; Switching modes: Buttons on the front panel and wired remote. installation steps: 1. Insert the adapter into the KVM ; 2. Plug the Displayport cable and HDMI cable into the KVM switch and monitor;(Output) 3. Plug the Displayport cable, HDMI cable and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included)(Input) Please check whether HDMI IN1, DP IN1 and USB IN1 are corresponding, and whether HDMI IN2, DP IN2 and USB IN2 are corresponding. Mixed insertion is not supported. HDMI IN1 + DP IN1 + USB IN1=PC1 HDMI IN2 + DP IN2 + USB IN2=PC2 4. Insert the mouse and keyboard into the KVM switch 5. If needed, you can connect a microphone and audio port Note： 1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 1 HDMI /1 DP cables connect to the KVM. 2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal. KM202B DP202B DKM202B KM202C Buying Options Add To Basket Add To Basket Buying Options Customer Reviews 3.9 out of 5 stars 210 3.9 out of 5 stars 210 3.6 out of 5 stars 33 3.3 out of 5 stars 50 Price — no data £65.99£65.99 £59.99£59.99 — no data Connector Type HDMI+HDMI DisplayPort+DisplayPort HDMI+DisplayPort HDMI+HDMI PCs 2 2 2 2 Monitors 2 2 2 2 Audio Output/Input ✓ ✓ ✓ ✓ USB 2.0 3 3 3 3 EDID × × × ✓ 4K@60Hz ✓ ✓ ✓ ✓
